TWITTER EM10 e bike 12S Oil Disc Brakes M600 Mid Motor 48V500W 27.5/29in carbon fiber full suspension soft tail electric bicycle
$4,246.00
- Model Number: EM10
- Certification: CE
- Rated Passenger Capacity: One Seat
- Style: Luxury Type
- Max Speed: 30-50km/h
- Range per Power: > 60 km
- Frame Material: carbon fibre
- Motor: Brushless
- Wheel Size: 27.5/29*2.25
- Wattage: > 500w
- Foldable: No
- Power Supply: lithium battery
- Voltage: 48V
- Brand Name: TWITTER
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: CYCTRAC/Customized
- Model Number: EM10 M600+48V15A, HIGH
- Gears: 12 Speed
- Range per Power: > 60 km
- Frame Material: Carbon Fibre
- Wheel Size: 27.5"/29"*2.25"
- Max Speed: 30-50Km/h
- Voltage: 48V
- Power Supply: Lithium Battery
- Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
- Torque: 90-100 Nm
- Charging Time: >3 hours
- Motor position: Central Motor
- Battery Position: Down Tube
- Battery Capacity: 15 Ah
- Tire Width: 27.5*2.25", 29*2.25"
- Product name: carbon full suspension electric bike
- Motor: Bafang Mid, M600, 48V250W
- Max Load: 150kg
- Brake: RS-LD400, Alu alloy CNC, 4-piston hydraulic disc
- Derailleur Lever: DEORE/M6100-12S
- Battery: 21700 Li-ion 720Wh, 48V15A
- Endurance Mileage: 130-150KM (pedal assist)
- Max Torque: 140 N.m
- Seat post: KS adjustable lifting with hydraulic, Remote,31.6**395*125mm
- Certification: CE ISO9001 MSDS
Products Description
|
Bike Model
|
EM10
carbon fiber electric mountain bike emtb bicycle |
|
ConfRev
|
M600+48V15A, 500W HIGH
|
|
Frame Size
|
29(27.5)×17"
|
|
Bike Color
|
DarkGreen / DarkGrayBlack / RedBlack / BlueBlack, HolographicBlack
|
|
Net Weight
|
24.7KG
|
|
Frame
|
CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser
decals |
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
|
|
Seat post
|
RS, Alu alloy,Matte, 31.6×350mm
|
|
Fork
|
RS, MgAl alloy, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
|
|
Head Sets
|
Alu alloy CNC with sealed Bearings 52*52mm
|
|
Derailleur Lever
|
SHIMANO DEORE/M6100-12S
|
|
Rear Derailleur
|
SHIMANO DEORE/M6100-12S
|
|
Cranksets
|
Matching with Mid Motor, 38T
|
|
Cassettes
|
SUNSHINE-12S,11-50T
|
|
Chain
|
SUMC-12S
|
|
Brake
|
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
|
|
Hub
|
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
|
Rim
|
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
|
|
Spoke
|
SHUNJIU, Circular 14G
|
|
Tire
|
MAXXIS, CROSSMARK, 29/27.5×2.25"
|
|
Grips
|
Circular 22.2×120mm, PU leather&locking Ring
|
|
Saddle
|
RS, Comfortable and Thickened for MTB
|
|
Pedals
|
RS, Alu alloy CNC with Bearings for MTB
|
|

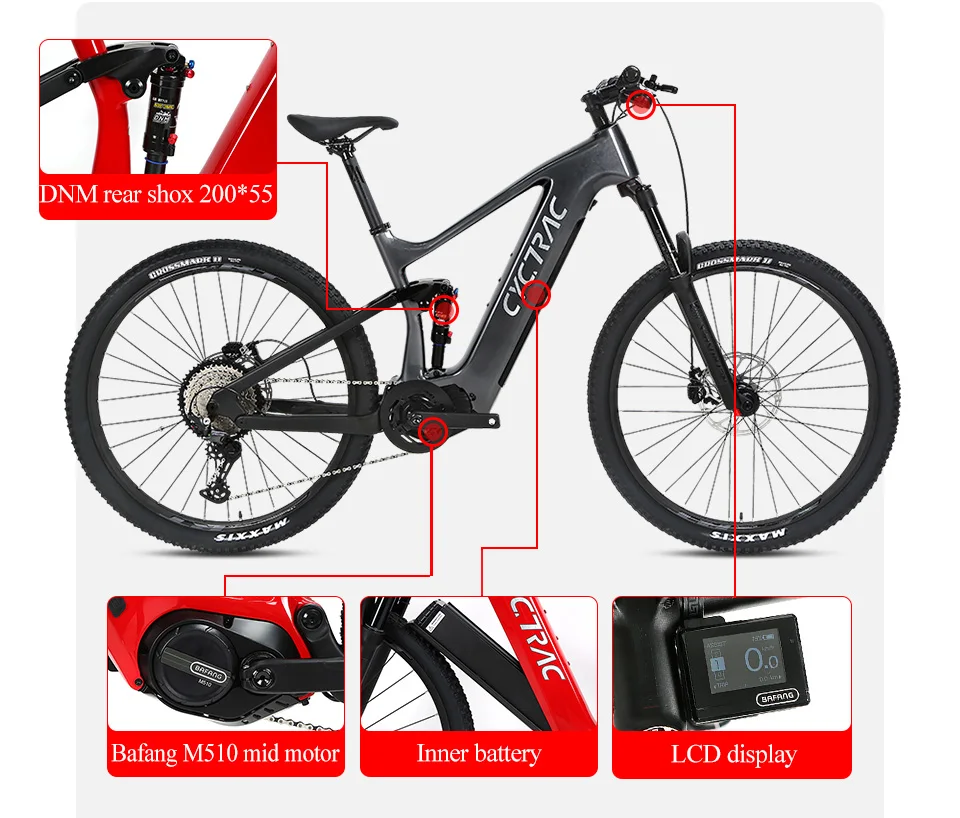

Motor System
|
Bafang Mid, M600, Mid, 48V500W
|
|
Max Torque
|
120 N.m (Peak 140N.m)
|
|
Speed Limit
|
25KMh (max 45KMh)
|
|
Pedal Sensor
|
Torque+Cadence
|
|
Battery
|
Samsung 21700 Li-ion 720Wh, 48V15A
|
|
Endurance
|
130-150KM (pedal assist)
|
|
Charging Time
|
8-9 Hours
|
|
Charger
|
2A, DC2.1
|
|
HMI
|
Bafang, LCD digital, 0-5 Modes
|
|
Waterproof
|
IP X5
|
|
Max Load
|
150 KG
|
Product packaging
>1.Material:Carton outside with Foam protection inside package. >2.Size:156CM*77CM*28CM >3.The pictures below are just a way of showing the packaging and do not represent the actual product.
Company Profile
Customer Photos
Our Services & Strength
>1.Bicycle frame made of high quality Carbon Fiber material.All carbon bikes used toray carbon T800/T900/T1000 material with crafted EPS technology. >2.We can offer very good quality with nice price.The parts which have high requirement about the size will be precisely machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement.
Certifications
Our Advantages
FAQ
>1. Q: Can I get some samples? A: We are honored to offer you sample for quality check. >2. Q: Can I mix different models? A: Yes,different models can be mixed . >3. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc. >4.Q: If you want to know more about us psl contact me directly.^_^ whatsapp/wechat:+86 19832664352
